Product Features
- Introducing our powerful 13000 lbs DC 12V Winch, designed for durability and performance. With a robust 6.0HP motor, this winch features a 3-stage planetary gear system for superior traction and efficiency. The lightweight, synthetic Dyneema rope offers exceptional strength—ten times that of steel—while being resistant to abrasion, UV rays, and harsh chemicals.
- Measuring 23.60" long, 13.30" wide, and 9.60" high, this winch is not only easy to handle with its comfortable clutch but also ensures user safety, as Dyneema is safer than steel if a break occurs. Enjoy the convenience of both a wireless and handheld remote for effortless control.
- Included in the package are everything you need to get started: the winch, hammer forged hook, wire cables, remotes, and an aluminum hawse fairlead. Weighing in at 55 lbs, this winch combines strength with a compact design. Upgrade your off-road experience with this reliable and efficient winch today!
Specifications
Product information
| Product Name | X-BULL Powerful Electric Winch with Synthetic Blue Rope |
| Main Color | Black |
| Main Material | Aluminium |
| Assembled Length | 23.60 inches |
| Assembled Width | 13.30 inches |
| Assembled Height | 9.60 inches |
| Weight | 55.00 lbs |
| Rated Line Pull | 13000 lbs |

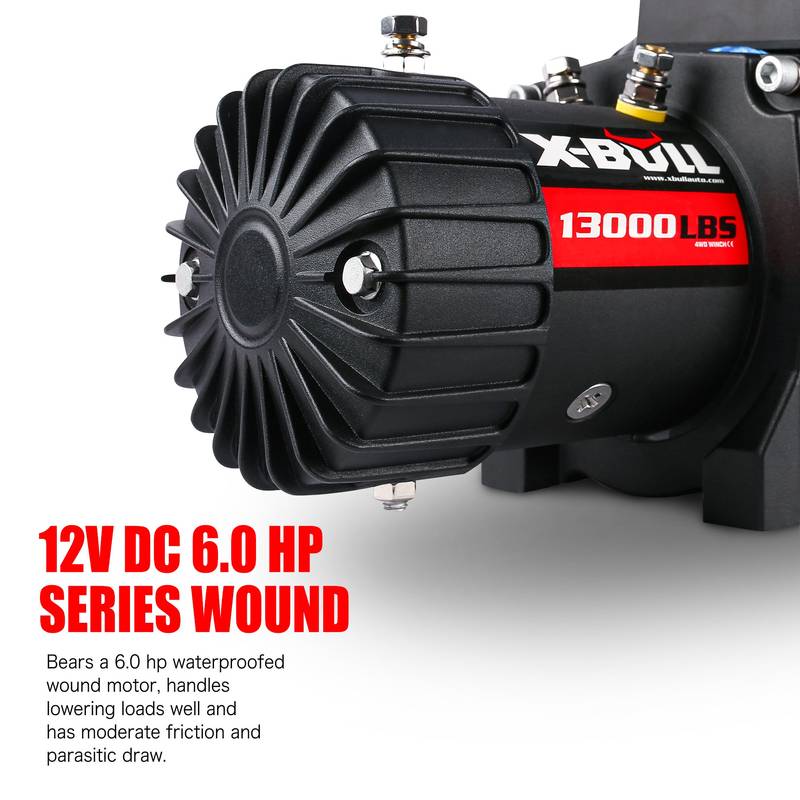

| Motor | 6.0 hp |

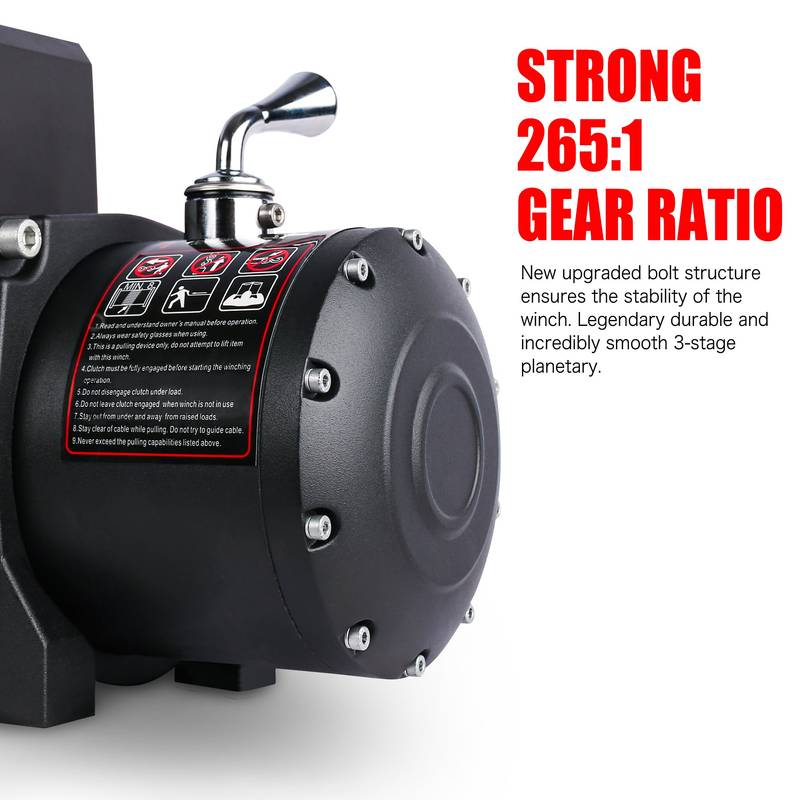

| Gear Ratio | 265:1 |
| Recommended Battery | 650 CCA Minimum |
| Remote Control | 1 PC Wireless Control / 1 PC Wired Control |
| Control Type | Remote Switch, 12 ft (3.7 m) Lead |

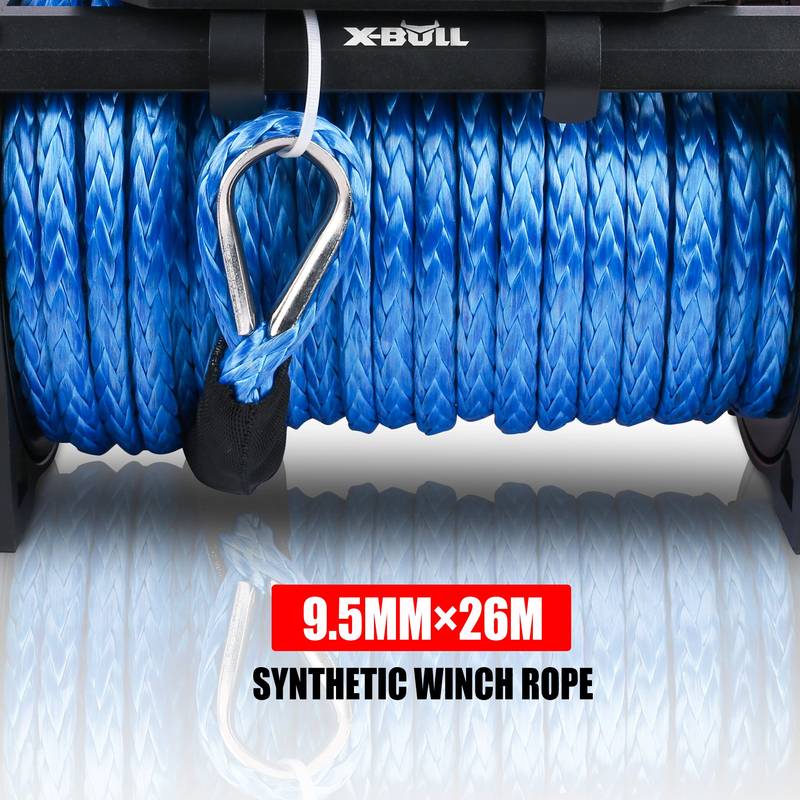

| Cable Length | 9.5 mm x 26 m |
| Gear Train | 3 Stage Planetary |
| Battery Leader | 2 gauge, 72 inches (1.83 m) |
| Fairlead | Aluminium Hawse Fairlead |
| Weight of Winch | 59.5 lbs (27.0 kg) |
| Material of Drum | Stainless Steel |
| Brake Type | Automatic Load-Holding Brake |
| Drum Size | 2.52 inches x 8.82 inches (64 mm x 224 mm) |
| Mounting Bolt Pattern | 10.00 ± 0.015 inches x 4.50 ± 0.010 inches (254 mm x 114.3 mm) |
| Cable Material | Synthetic Rope |
| Dimensions of Winch | 530 mm x 160 mm x 218 mm |

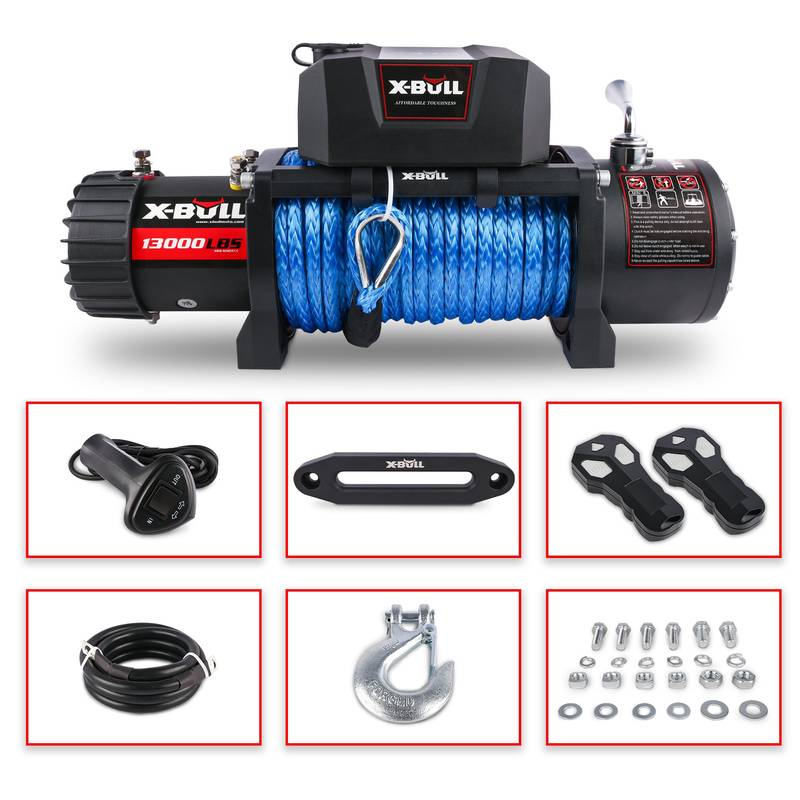

| Included Items | 13000 lbs DC 12V Winch x 1, Hammer Forged Hook x 1, Set of Bolts x 1, Set of Wire Cables x 1, Wireless Remote Controller x 1, Hand Remote Controller x 1, User Manual x 1, Aluminium Hawse Fairlead x 1 |
| Advantages of Dyneema Rope | The weight of Dyneema rope is 1/10 of the weight of steel rope. It reduces the weight of the winch by about 20 pounds. The strength of Dyneema rope is 10 times that of steel rope. Dyneema rope has good resistance to bending fatigue, abrasion resistance, weather resistance, UV protection, and chemical resistance. Dyneema rope is safer than steel when the rope breaks. |
