Product Features

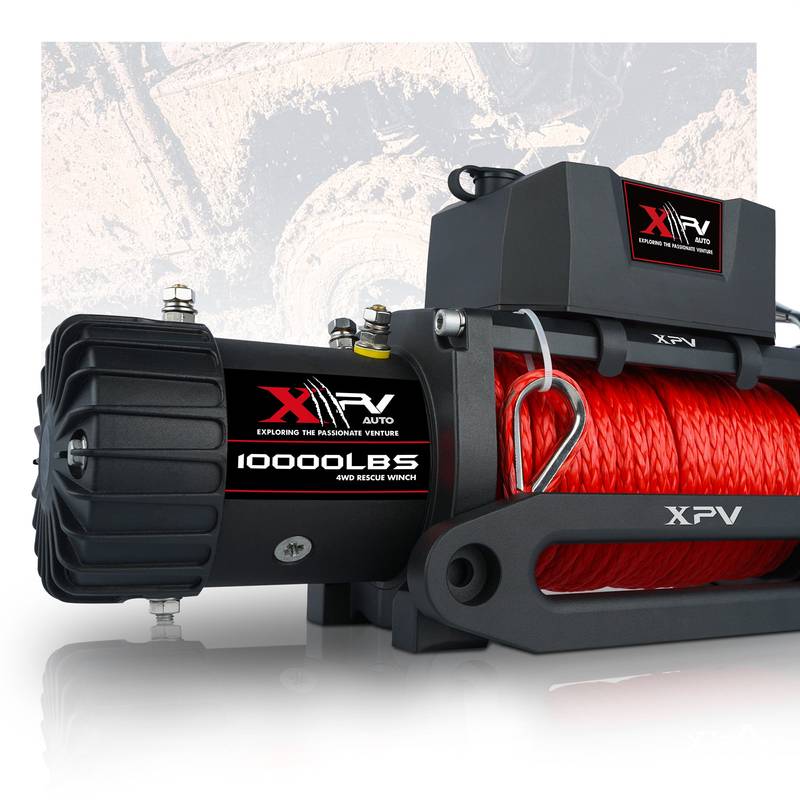

- Introducing our 10000 lbs DC 12V Winch, designed for power and precision in every pull. Crafted from durable aluminum and featuring strong synthetic rope, this winch ensures safety with superior abrasion resistance and UV protection.
- Key Features:

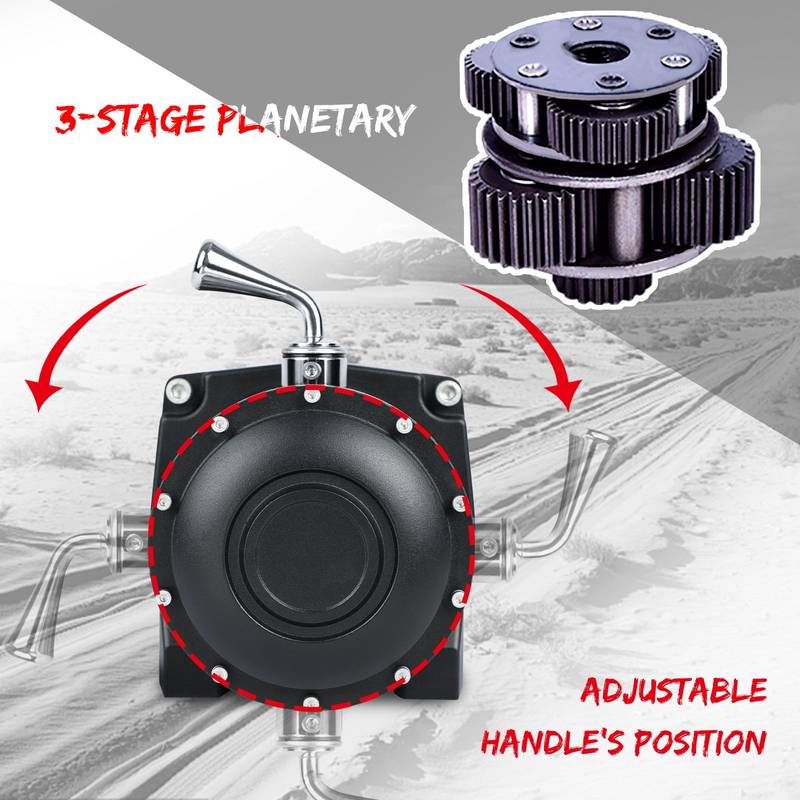

- - Powerful Performance: Equipped with a 5.6HP motor and efficient 3-stage planetary gear, it delivers a gear ratio of 265:1 for impressive traction.
- - User-Friendly Control: Comes with both a wireless remote and a hand remote for easy operation, even while wearing gloves.

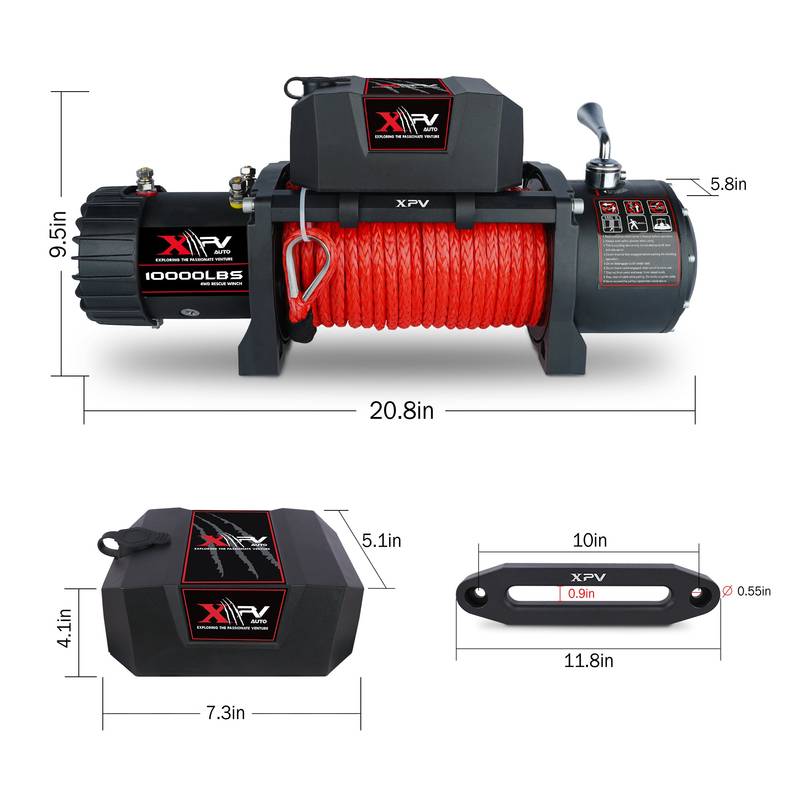

- - Robust Design: Weighing 55 lbs with a compact size (23.60" x 13.30" x 9.60"), it’s tough yet manageable.

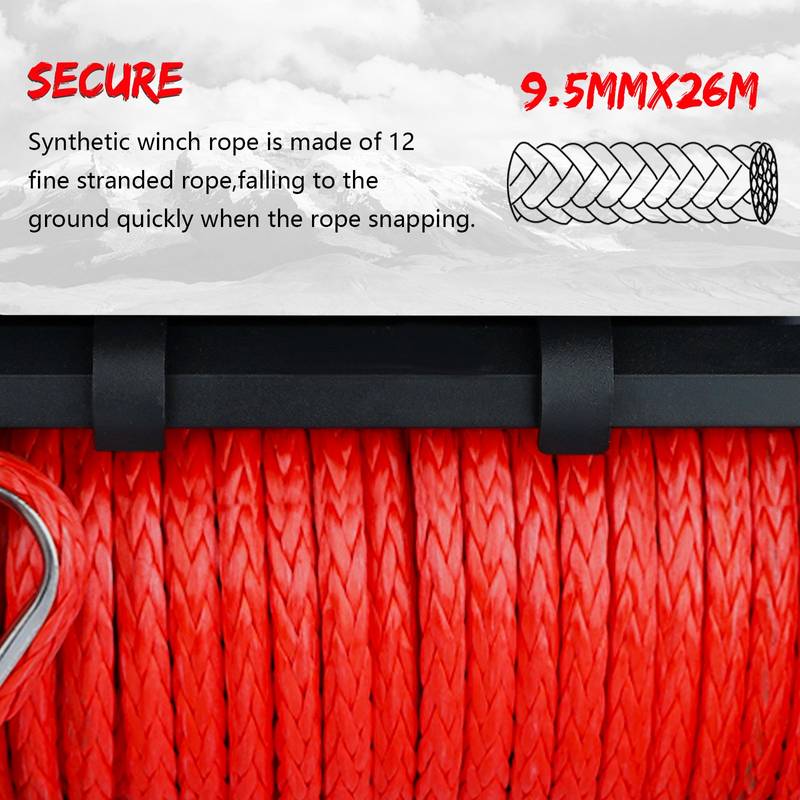

- - Safety First: The automatic load-holding brake and synthetic rope make for a safer alternative to steel ropes.

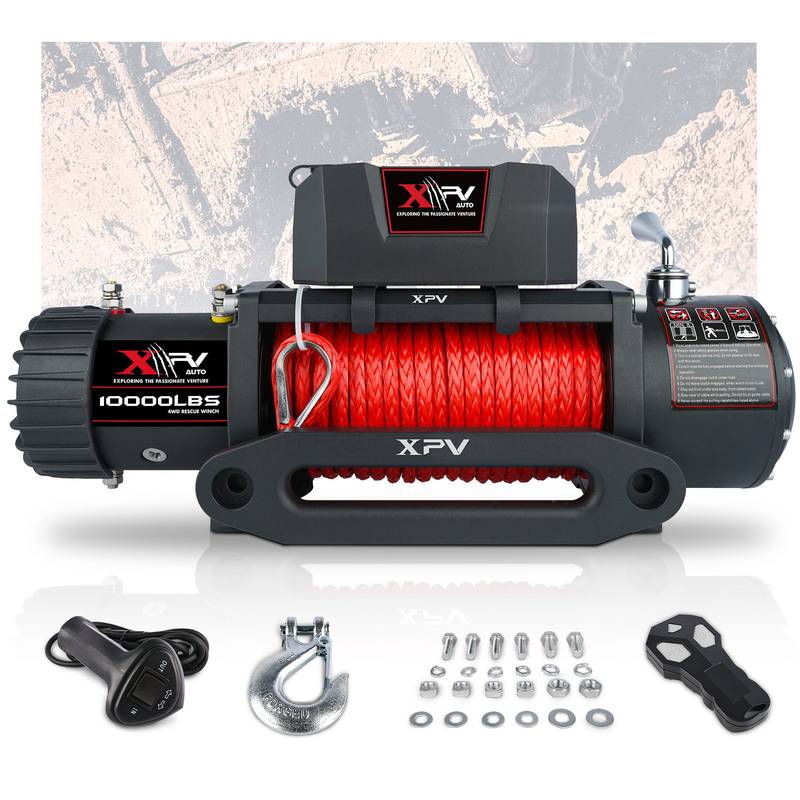

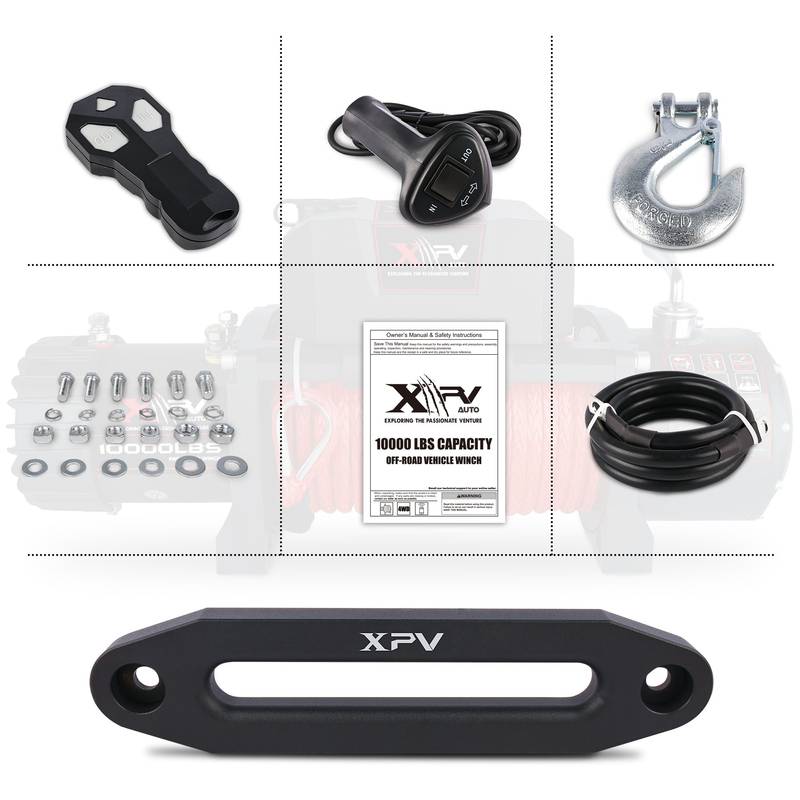

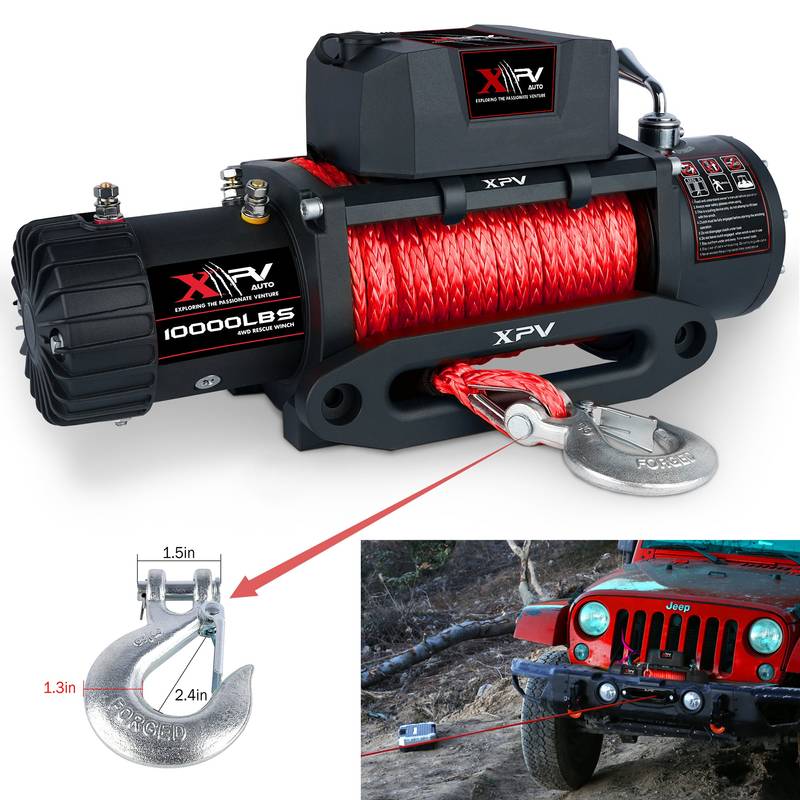

- Included in the box are the winch, a hammer-forged hook, wireless and hand remote controllers, cables, and an aluminum hawse fairlead, along with a detailed user manual. Take on any challenge with confidence and ease!
Specifications
Product information
| Product Name | Epic Electric Winch - Ultimate Towing Power for Off-Road Adventures! |
| Main Color | Black |
| Main Material | Aluminium |
| Assembled Length | 23.60 inches |
| Assembled Width | 13.30 inches |
| Assembled Height | 9.60 inches |
| Weight | 55.00 lbs |
| Rated Line Pull | 10000 lbs |
| Motor | 5.6 hp |
| Gear Ratio | 265:1 |
| Recommended Battery | 650 CCA Minimum |
| Remote Control | 1 PC Wireless Control / 1 PC Wire Control |
| Control | Remote Switch, 12 ft Lead |
| Cable Length | 9 mm x 18 m |
| Gear Train | 3 Stage Planetary |
| Battery Leader | 2 gauge, 72 inches |
| Fairlead | Aluminium Hawse Fairlead |
| Weight (Included) | 59.5 lbs (27.0 Kgs) |
| Material | Stainless Steel |
| Brake | Automatic Load-Holding Brake |
| Drum Size | 2.52 inches x 8.82 inches |
| Mounting Bolt Pattern | 10.00 ± 0.015 inches x 4.50 ± 0.010 inches |
| Cable Material | Synthetic Rope |
| Dimensions | 530 mm x 160 mm x 218 mm |
| Included Items | 10000 lbs DC 12V Winch, Hammer Forged Hook, Set of Bolts, Set of Wire Cables, Wireless Remote Controller, Hand Remote Controller, User Manual, Aluminium Hawse Fairlead |
