Product Features

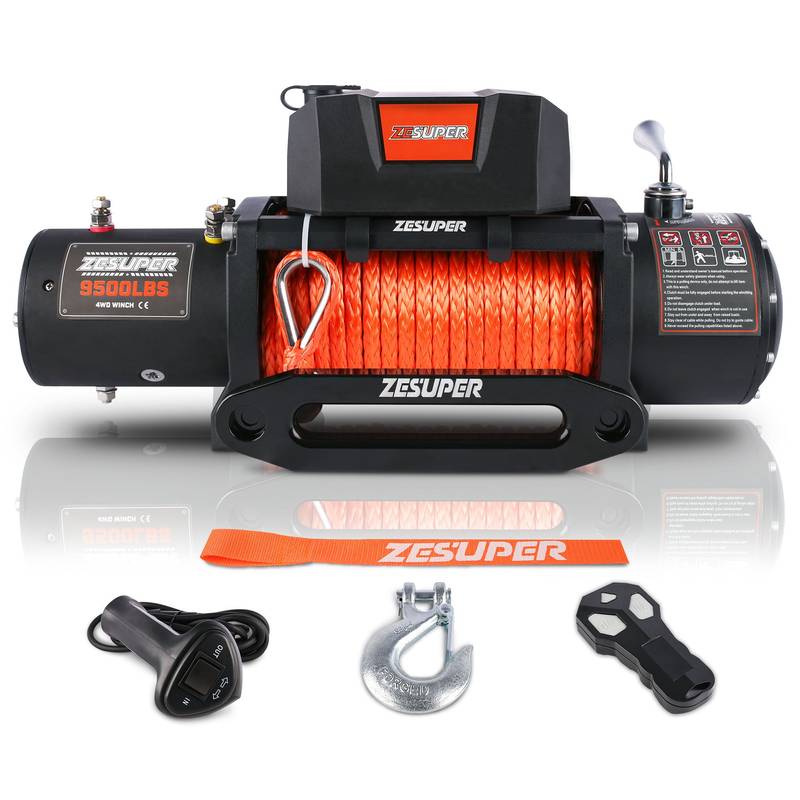

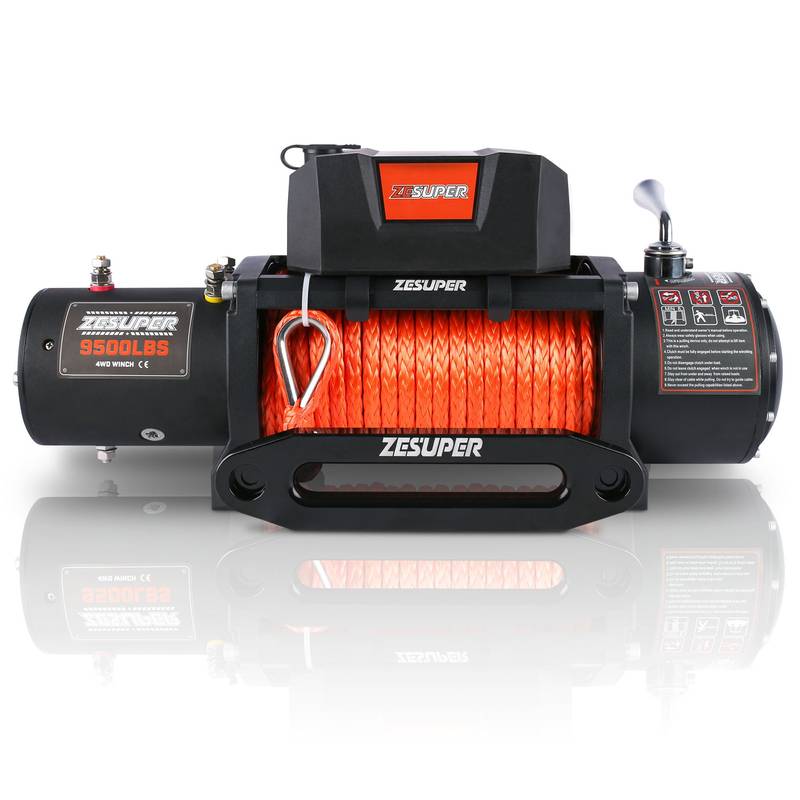

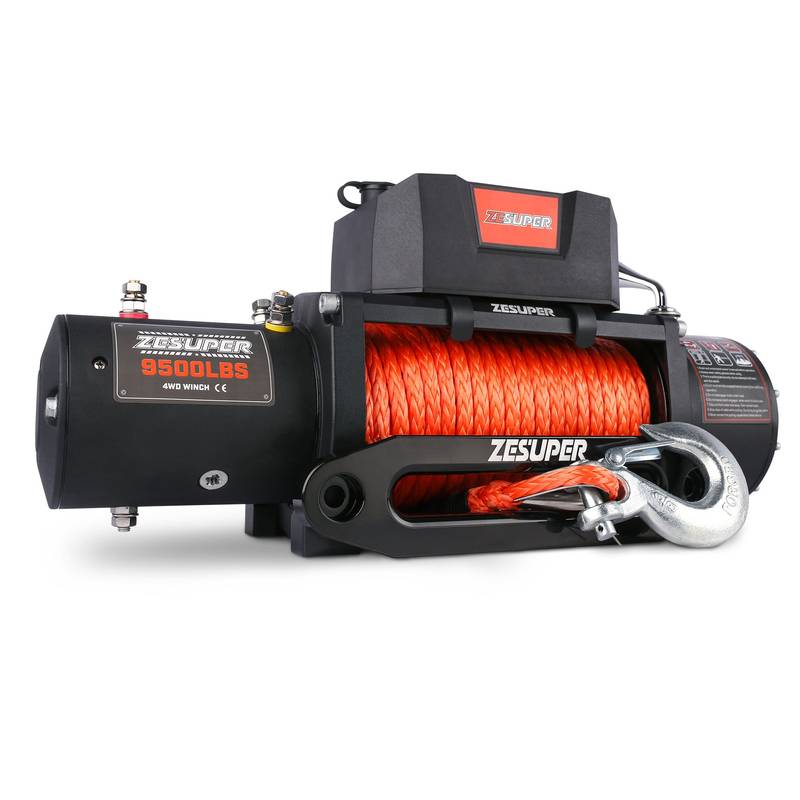

- Introducing our powerful 9500 lbs DC 12V Winch, engineered for efficiency and durability. Crafted from robust aluminum and featuring a lightweight design (only 59.5 lbs), this winch combines strength and versatility to tackle your toughest jobs.
- With a potent 5.6 HP motor and a 265:1 gear ratio, it delivers exceptional traction through its advanced 3-stage planetary gear system. The synthetic rope ensures safety and resilience, resisting bending fatigue, abrasion, UV rays, and chemicals.
- User-friendly features like a comfortable handle clutch, remote control options (wireless and wired), and an automatic load-holding brake make operation easy—even while wearing gloves. The kit includes everything you need, from a hammer-forged hook to wire cables and two types of remotes.

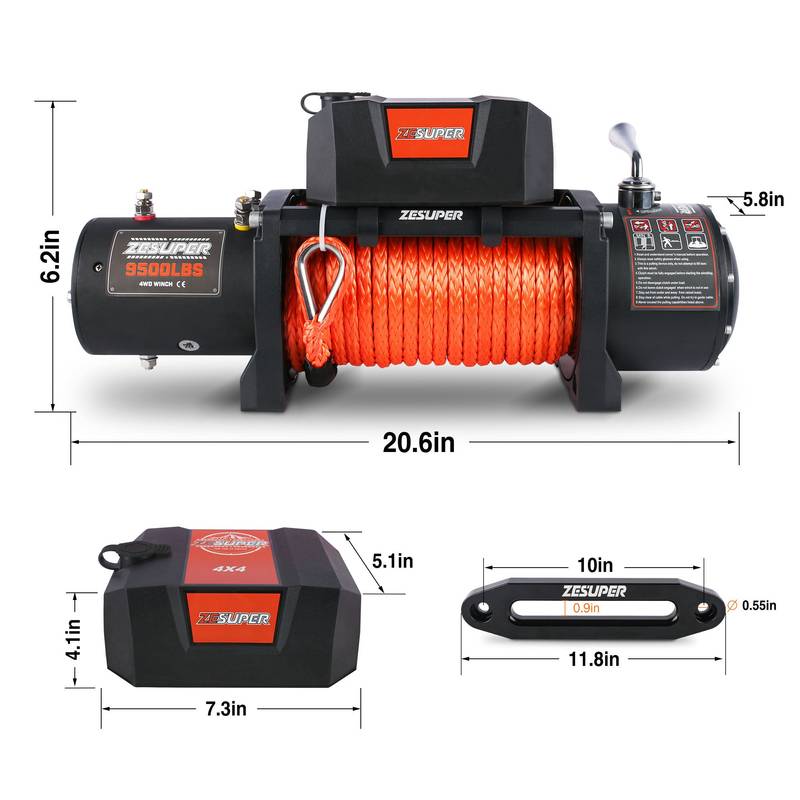

- Dimensions: 23.6" x 13.3" x 9.6". Don’t just winch—winch smarter with our reliable and efficient design.
Specifications
Product information
| Product Name | PowerPull Wireless Winch Kit |
| Main Color | Black |
| Main Material | Aluminium |
| Max Rated Line Pull | 9500 lbs |
| Motor Power | 5.6 hp |
| Gear Ratio | 265:1 |
| Recommended Battery | 650 CCA Minimum |
| Remote Control Type | 1 PC Wireless Control / 1 PC Wire Control |
| Control Type | Remote Switch, 12 ft (3.7 m) Lead |
| Cable Length | 9 mm x 18 m |
| Gear Train Type | 3 Stage Planetary |
| Battery Leader Size | 2 Gauge, 72 in (1.83 m) |
| Fairlead Type | Aluminium Hawse Fairlead |
| Overall Weight | 59.5 lbs (27.0 kg) |
| Drum Size | 2.52 in x 8.82 in (64 mm x 224 mm) |
| Mounting Bolt Pattern | 10.00 ± 0.015 in x 4.50 ± 0.010 in (254 mm x 114.3 mm) |
| Cable Material | Synthetic Rope |
| Overall Dimensions | 530 mm x 160 mm x 218 mm |

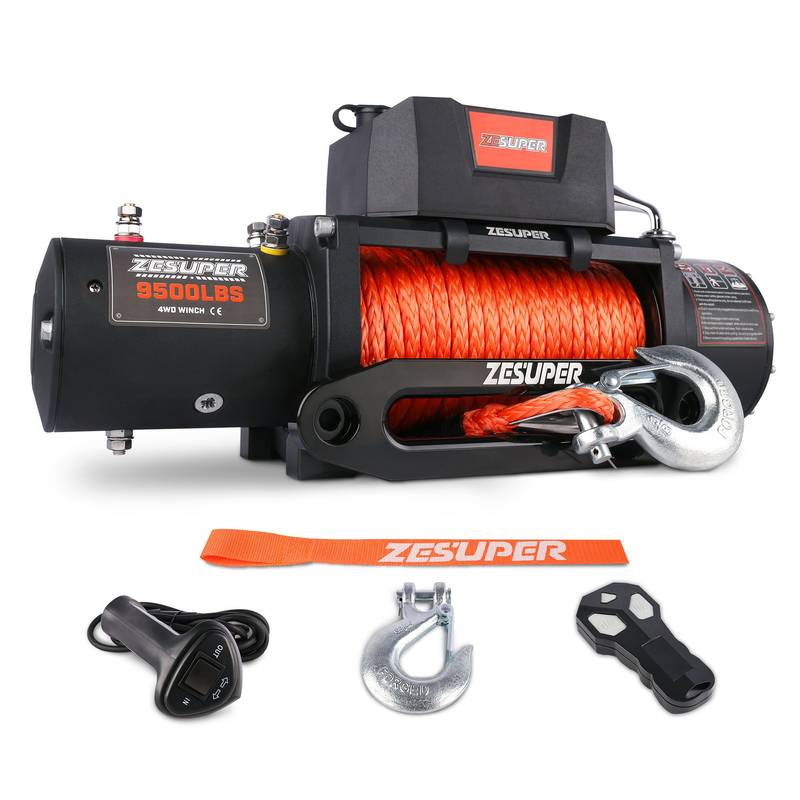

| Included Items | 9500 lbs DC 12V Winch × 1, Hammer Forged Hook × 1, Set of Bolts × 1, Set of Wire Cables × 1, Wireless Remote Controller × 1, Hand Remote Controller × 1, User Manual × 1, Aluminium Hawse Fairlead × 1 |
