Product Features
- Introducing the STEGODON Series S3 Electric Winch – your ultimate towing companion. Crafted from durable aluminum, this sleek black winch merges style with strength, offering a robust 9500 lb pulling capacity.
- Key Features:
- - Enhanced design with a reinforced clutch handle to prevent cracking.
- - Top-of-the-line solenoid and gearbox for increased stability and performance.
- - Wireless remote control that operates up to 325 ft for ease at a distance.
- - High-efficiency 3-stage planetary gear system powered by a 5.5HP electric motor for impressive pulling power.
- - Fast operation speeds – 25.2 ft/min when empty and 6.6 ft/min under load.
- Specifications include:
- - Dimensions: 23.6” L x 13.3” W x 9.6” H, 56 lbs weight.
- - Waterproof (IP67 rating) with heavy-duty construction.

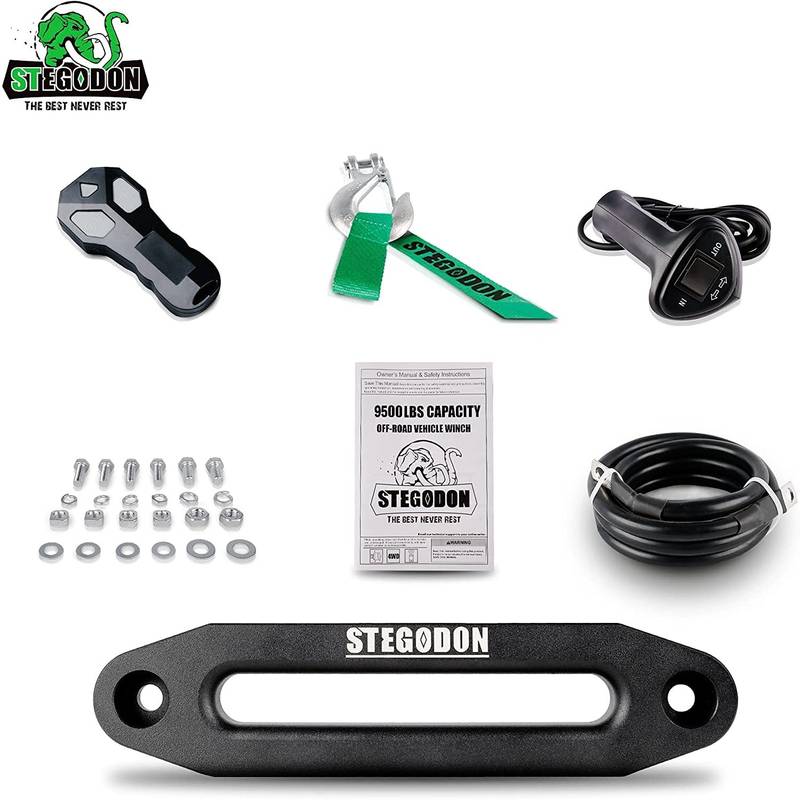

- - Comes complete with both wire and wireless remotes, an aluminum hawse fairlead, and all necessary accessories.
- Get ready to tackle any challenge with confidence and convenience with the STEGODON Series S3 Electric Winch. Upgrade your outdoor adventures today!
Specifications
Product information
| Product Name | Ultimate Power Winch - Strong, Waterproof, Remote-Controlled! |
| Main Color | Black |
| Main Material | Aluminium |
| Assembled Length | 23.60 |
| Assembled Width | 13.30 |
| Assembled Height | 9.60 |
| Weight | 56.00 |
| Brand | STEGODO/N |
| Rope | OFT Synthetic Rope |
| Rated Line Pull | 9500lbs Single Line |
| Motor | DC 1EV Motor with S.SHP/4.1KH Output |
| Gear Reduction Ratio | 265:1 |
| IP Rating | IF 67 - Winch and Controls |
| Fairlead | Aluminium Hawse Fairlead |
| Control | Wire/Wireless Remote Control |
| Brake | Auto, Load Holding Mechanical |
| Duty Cycle Rating | 5% |
| C4S Sec At Max Rated Load | 1 Min, 15 Sec Rest |
