Product Features
- Introducing our powerful 10,000 lbs DC 12V Winch - your ultimate companion for off-road adventures and heavy lifting tasks. Crafted with durable aluminum and featuring a sleek black design, this winch is both sturdy and stylish.
- Key Features:
- - Strong synthetic rope offers superior resistance to bending, abrasion, UV, and chemicals, ensuring safety and longevity.
- - Efficient 3-stage planetary gear enhances traction, powered by a robust 5.6HP motor.

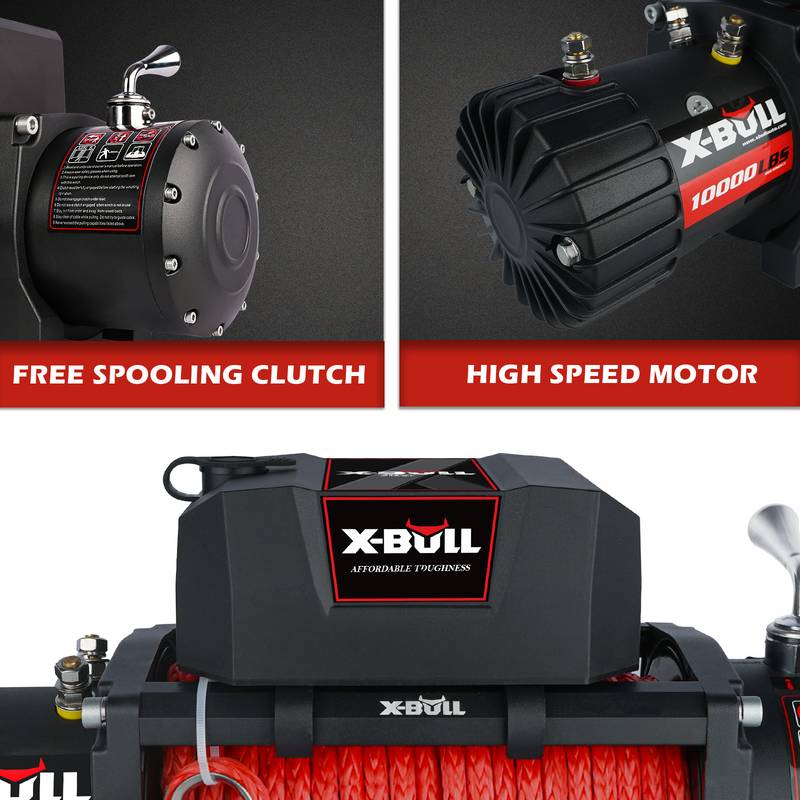

- - User-friendly handle clutch is designed for comfort, making operation simple even with gloves.
- - Advanced gear system enables versatile operations, achieving high speed ratios for effective performance.
- Specifications:
- - Assembled dimensions: 23.60" L x 13.30" W x 9.60" H
- - Weight: 59.5 lbs
- - Comes with a wireless remote and a wired control option for easy operation from a distance.
- In the box, enjoy everything you need to get started: a clevis hook, bolts, wire cables, control box, fairlead, and user manual.
- Elevate your capability with our high-performance winch, ready to tackle any challenge!
Specifications
Product information
| Product Name | X-BULL Power Rope Winch - Ultimate Off-Road Towing Solution |
| Main Color | Black |
| Main Material | Aluminium |
| Assembled Length | 23.60 inches |
| Assembled Width | 13.30 inches |
| Assembled Height | 9.60 inches |
| Weight | 55.00 lbs |
| Rated Line Pull | 10000 lbs |

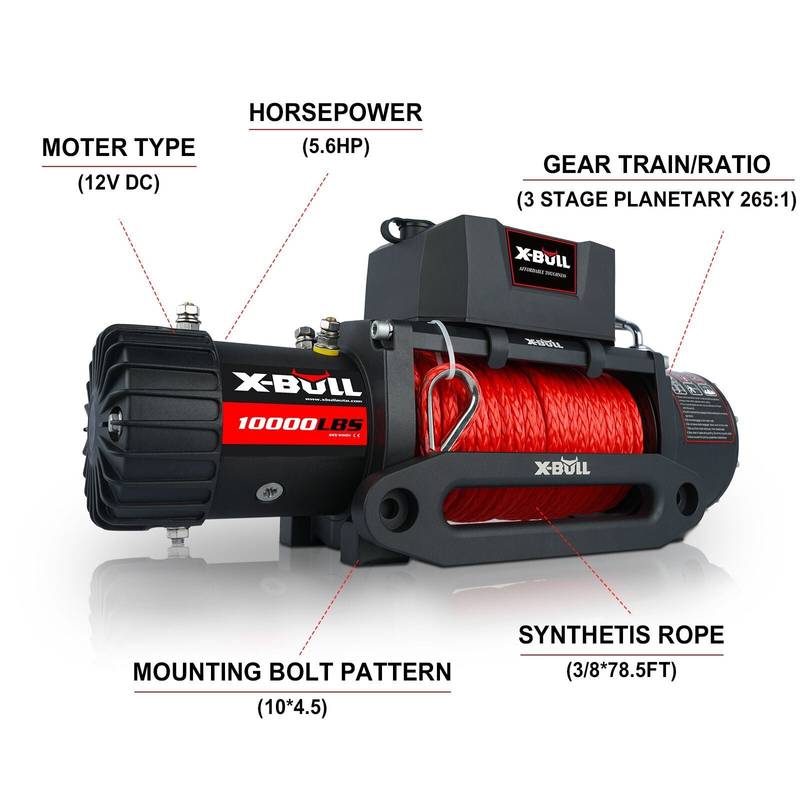

| Motor | 5.6 hp |
| Gear Ratio | 265:1 |
| Recommended Battery | 650 CCA Minimum |
| Remote Control | 1 PC Wireless Control / 1 PC Wired Control |
| Control | Remote Switch, 12 ft (3.7 m) Lead |
| Cable Length | 9 mm x 18 m |
| Gear Train | 3 Stage Planetary |
| Battery Leader | 2 Gauge, 72 inches (1.83 m) |
| Fairlead | Aluminium Hawse Fairlead |
| Drum Size | 2.52 inches × 8.82 inches (64 mm × 224 mm) |
| Mounting Bolt Pattern | 10.00±0.015 inches × 4.50±0.010 inches (254 mm × 114.3 mm) |
| Cable Material | Synthetic Rope |

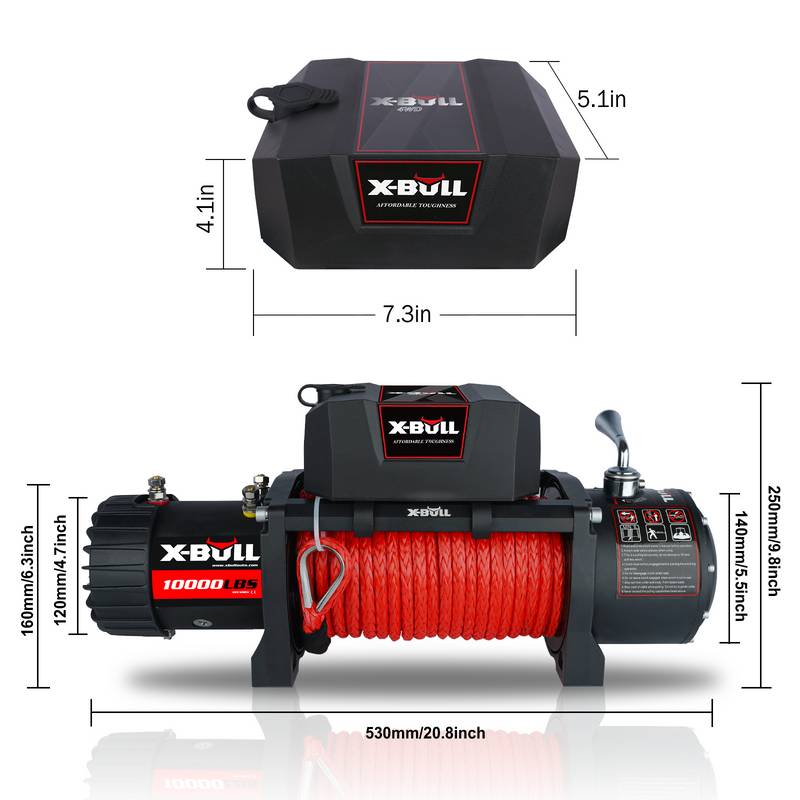

| Dimensions | 530 mm × 160 mm × 218 mm |

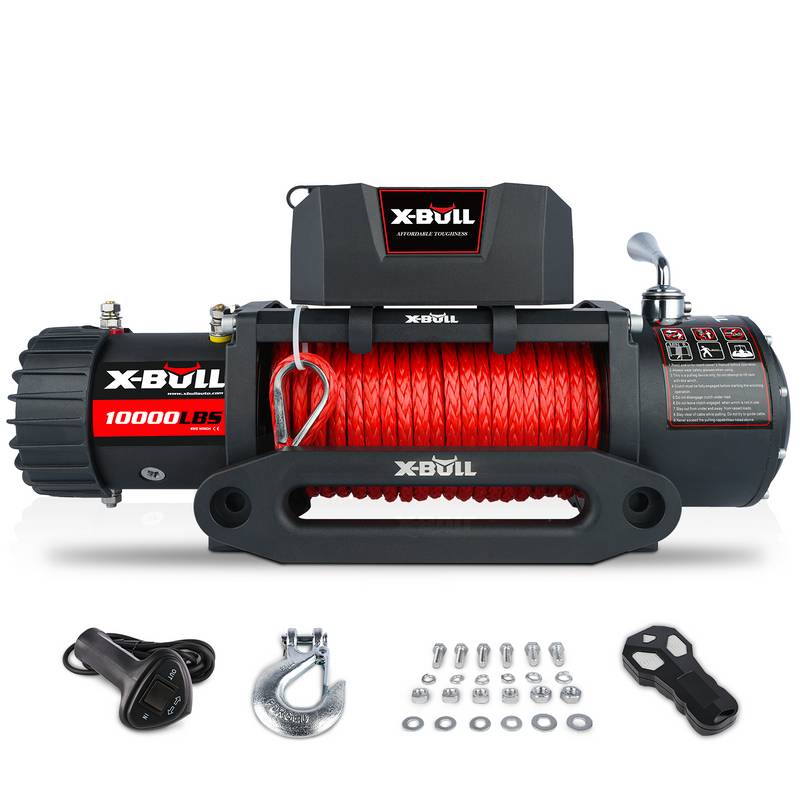

| Included In The Box | 10000 lbs DC 12V Winch × 1, Clevis Hook × 1, Set of Bolts × 1, Set of Wire Cables × 1, Control Box × 1, Wireless Remote Controller × 1, Hand Remote Controller × 1, Fairlead × 1, User Manual × 1 |
