Product Features

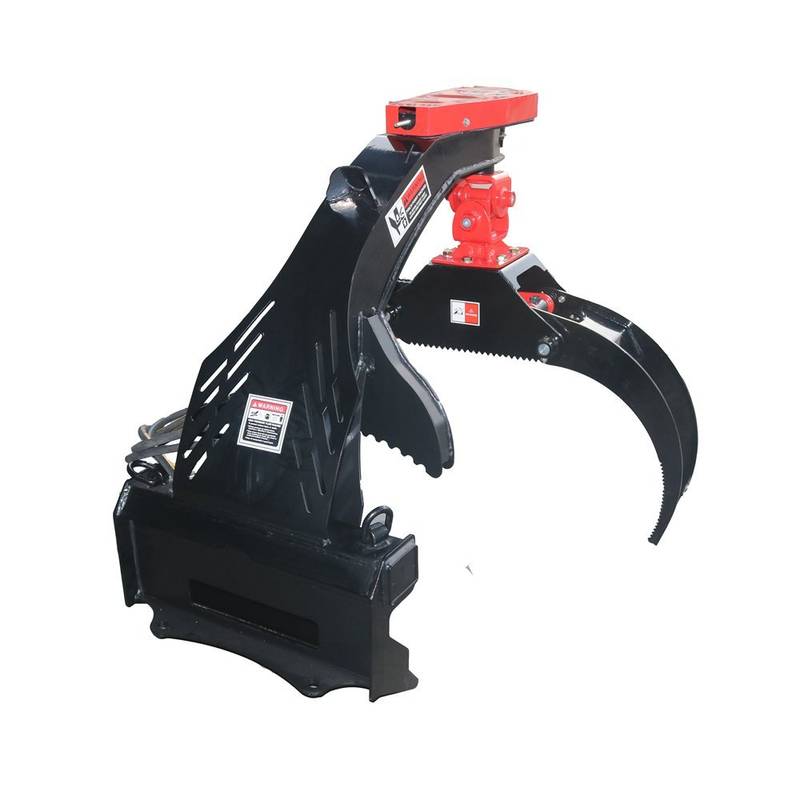

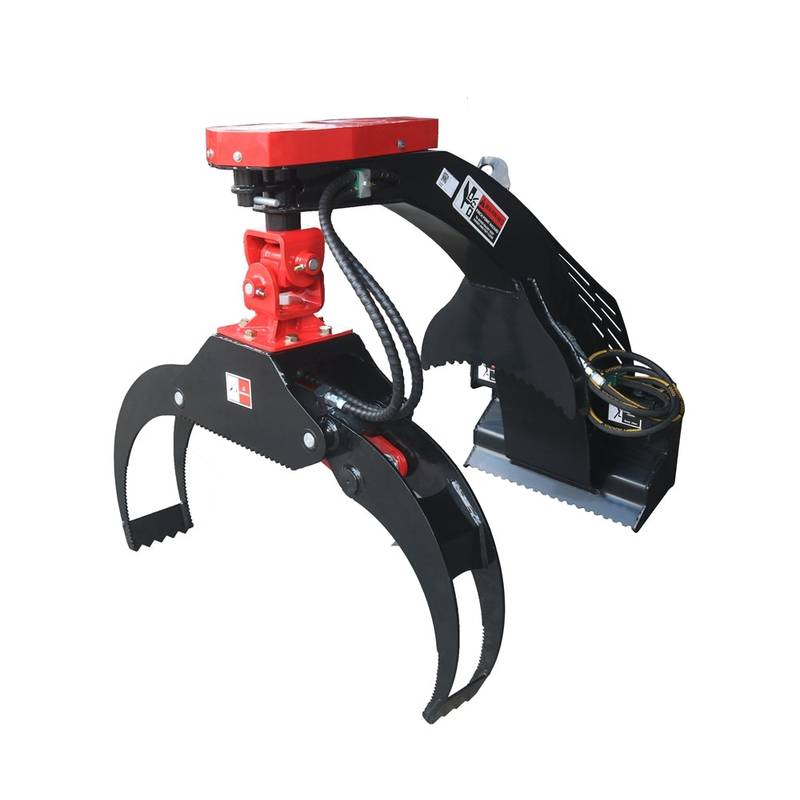

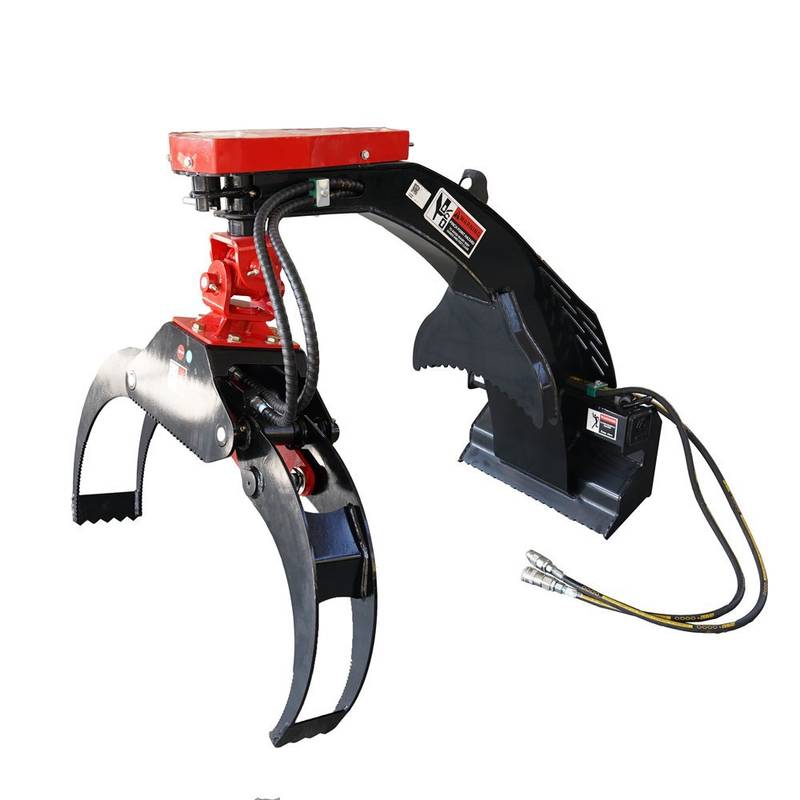

- Introducing the perfect attachment for your skid steer, designed to elevate efficiency for landscapers and tree service pros. This robust bypass grapple features a universal quick attach, allowing easy compatibility with various skid steers.
- Key Features:
- - Made from durable steel and finished in sleek black
- - Hydraulic operation lets you easily open (3"-48") and rotate (180°) the grapple

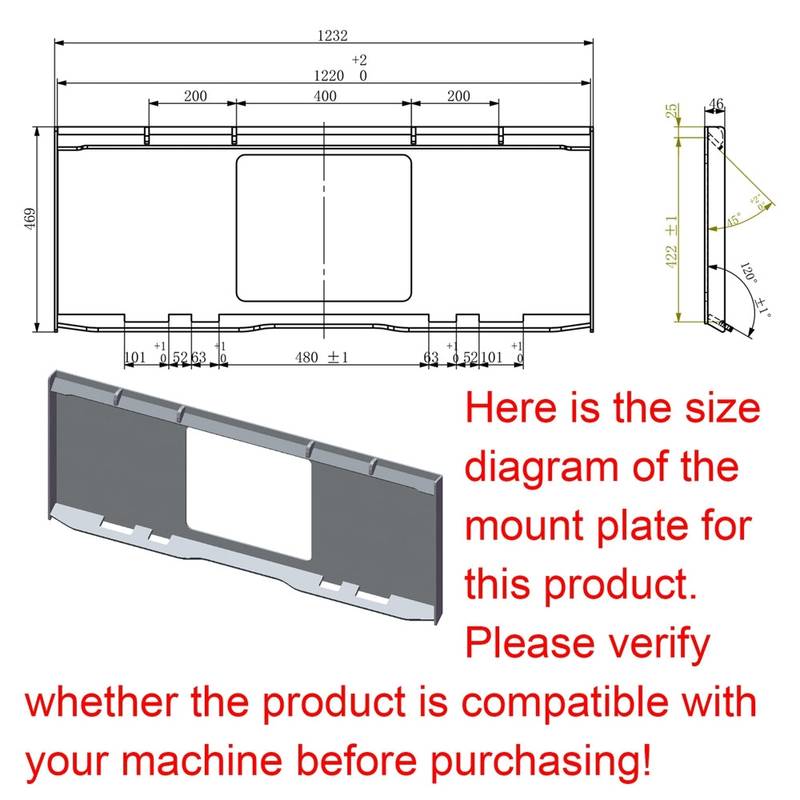

- - Comes complete with a mounting plate, hoses, and couplings for quick setup
- - Boasts a boom lift capacity of 3000 lbs and a clamp force of 9400 lbs for heavy-duty hauling
- - Ideal for accessing tight spaces, making your work more efficient
- With impressive specifications such as a hydraulic flow of 60LPM and working pressure of 20Mpa, this grapple maximizes your machine's performance. Measuring 52" long, 48.8" wide, and 45" tall while weighing 602 lbs, it’s a powerhouse attachment you won’t want to miss.
Specifications
Product information
| Product Name | Log Master Grapple |
| Main Color | Black |
| Main Material | Steel |
| Assembled Length | 52.00 in. |
| Assembled Width | 48.80 in. |
| Assembled Height | 45.00 in. |
| Weight | 602.00 lbs |
| Engine HP Range | 25-65 |
| Boom Lift Capacity | 3000 lb |
| Rotator Rating | 6750 lb |
| Hydraulic Flow | 60 LPM |
| Working Pressure | 20 Mpa |
| Grapple Opening | 3-48 |
| Grapple Rotation | 180 ° |
| Clamp Force | 9400 lb |
